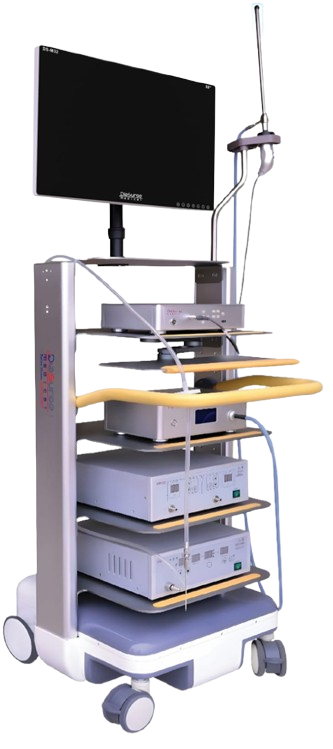

HD ENDOSCOPY CAMERA SYSTEM
Our state-of-the-art solutions embody the latest advancements in medical technology, while our forward-looking designs ensure you are fully prepared for future developments. Our endoscopy camera systems come equipped with predefined autoadjustment settings, eliminating the need for manual configuration. Built-in features such as automatic image optimization, white balance, and brightness adjustment deliver trueto-life color reproduction and high-resolution, real-time video. With multiple output options—including USB—for enhanced image detail, procedures can also be easily recorded for documentation or review.

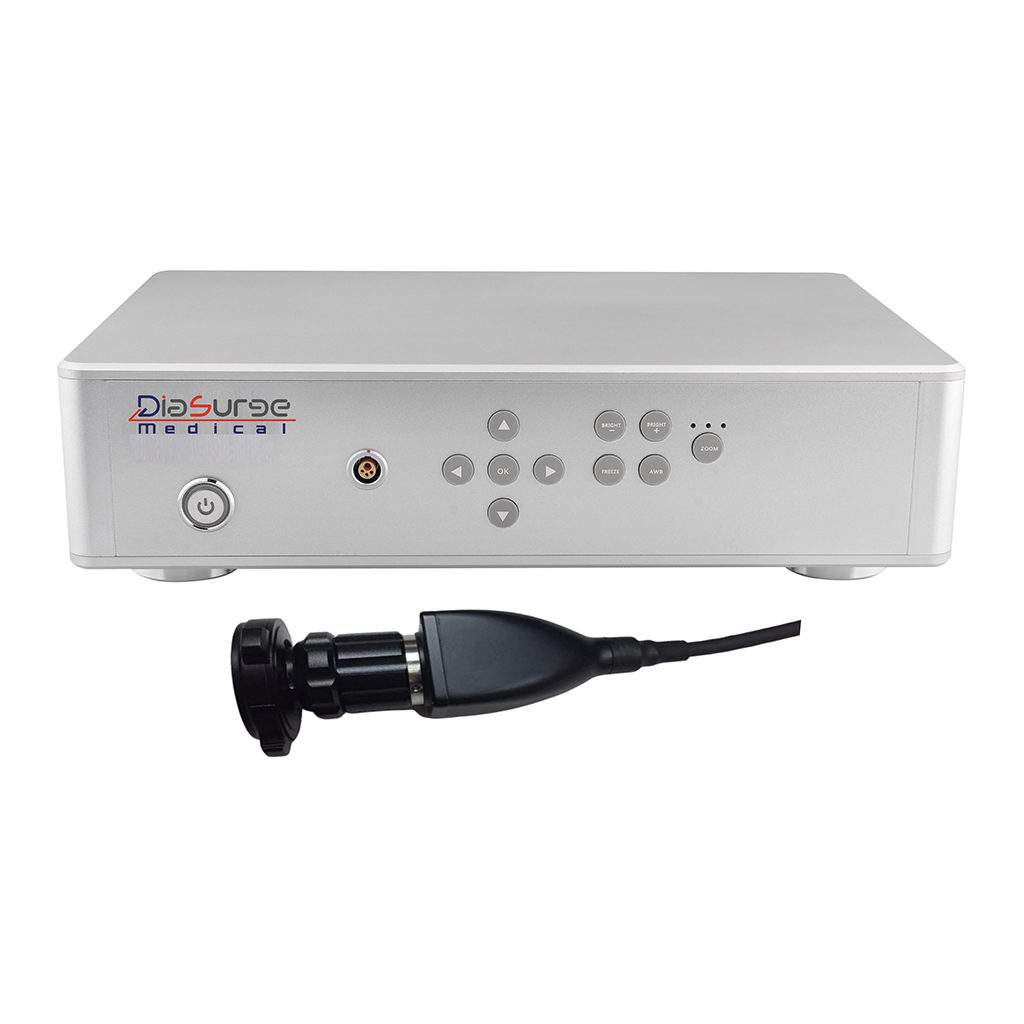

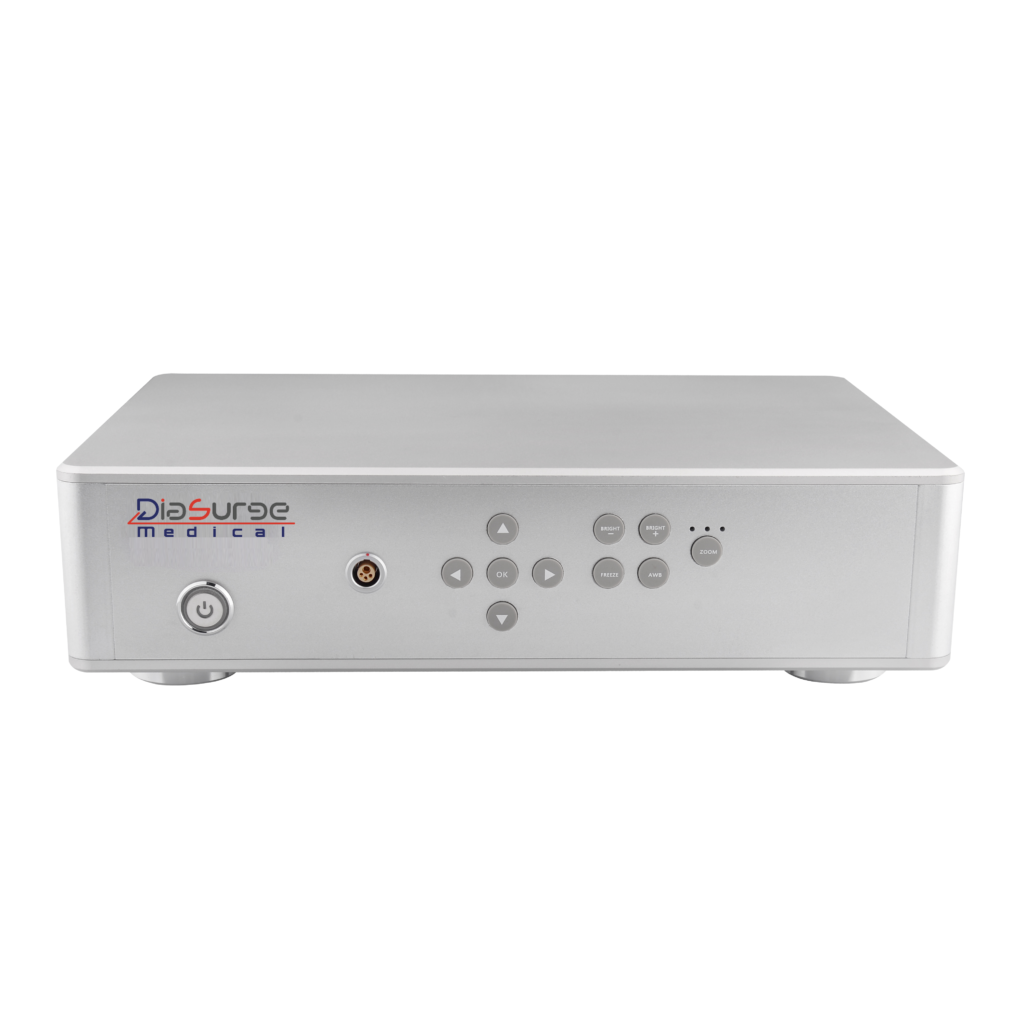

1 CMOS Endoscopy Camera System
DS-C180 HD
Functions and Features
- Chips – 1/1.8″ or 1/2.8″ Sony CMOS chip
- Multiple output formats – 1080p, 1080i, 1280×1024 at 60 fps
- Maximum pixels: 1200 TVL
- Camera head is of low power.
- Camera head function: brightness adjustment, AWB, image capture and recording
- Image position can be adjusted
- several surgeon‑scene presets can be saved
- Adopts advanced technology for superior performance
- Outputs include DVI, HDMI, VGA, CVBS, LVDS and RJ‑45 connectors.
- Support USB/SD Recording.

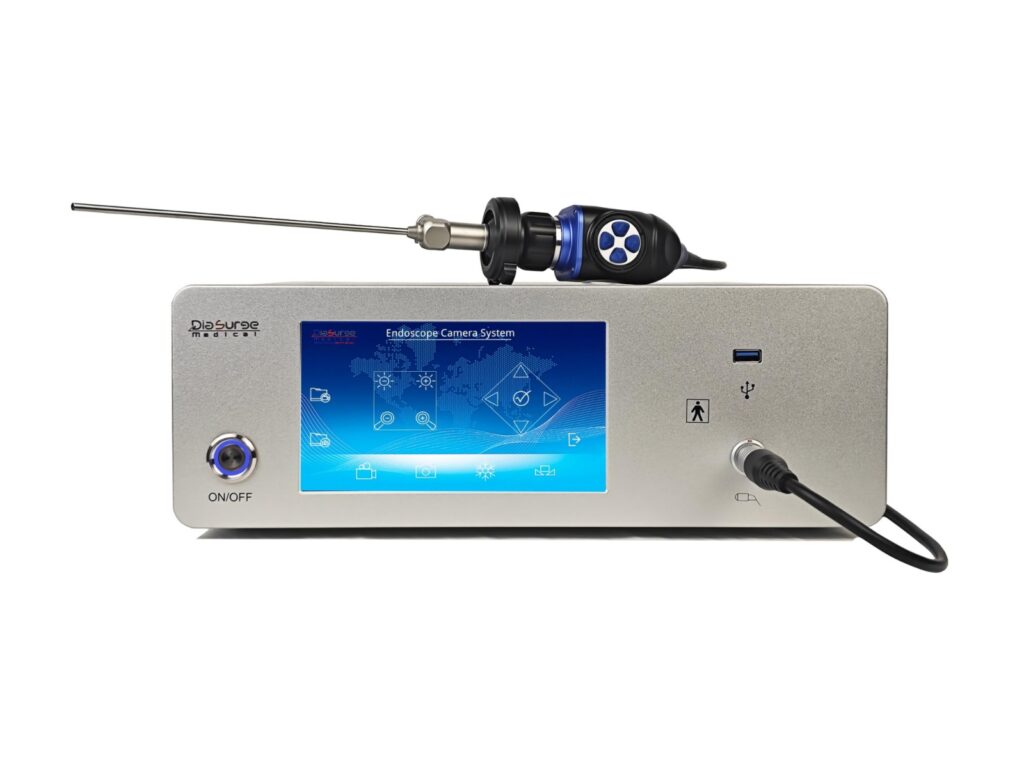

4K Endoscopy Camera System
DS-C180 4K
Functions and Features
- Chip: 1/1.8″ Sony Signal CMOS Chip.
- Frame Rate: 60fps.
- Maximus Pixels: > 1700 TVL
- Pixels: >8,000,000 Pixels.
- Camera head function: brightness adjustment, AWB, image capture and recording
- Resolution: 3840x2160P
- 8 sets surgeon scenes can be saved.
- Low Latency: 80ms.
- Output Interface: HDMI+DVI+SDI+RJ45+USB.
- Support USB/SD Recording.
